Commercial Ribbed Steel

2" Thick

OPTIONAL
INSULATION

Strength and Value

The Haas Commercial Ribbed Steel Series doors are a value-based
product that offers the strength of steel in four panel and color choices.
Energy efficient insulation panels are an upgradable option available on all models. Ribbed steel doors are the ideal choice when economy is the
prime consideration but a high quality, beautifully crafted product is still a necessity.

Available Options

2” or 3” Track
Double Steel End Stiles
Exhaust Port
Cam Safety Device
Spring Bumpers
Chain Hoist
High Cycle Springs
Wind Load Rating

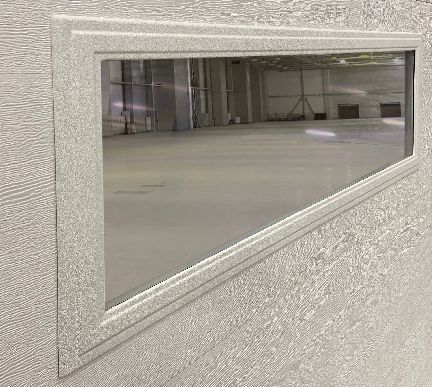

Glazing (lites)
High Cycle Rollers
Aluminum Full View Section
Keyed Lock

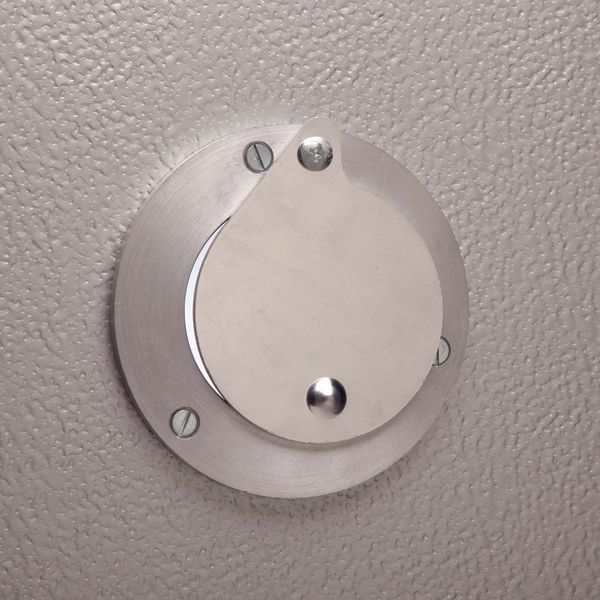

Optional Exhaust Port (interior view)

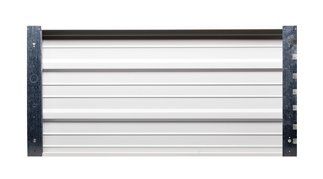

Ribbed Steel Series Quick Guide

Model	Panel	Door Thickness	R-Value*	Max. Door Size		End Style Type	Section Skins		Insulation Type	Color & Window Options
				Width	Height		Inside	Outside
220		2"	N/A	30'-2"	20'-2"	Boxed Steel	N/A	20 GA Ribbed Steel	None	White Only Window Options
220-L		2"	7.45	30'-2"	20'-2"	Boxed Steel	Laminate Backer	20 GA Ribbed Steel	Inserted Polystyrene Panels	White Only Window Options
220-S		2"	7.45	30'-2"	20'-2"	Boxed Steel	Steel Backer	20 GA Ribbed Steel	Inserted Polystyrene Panels	White Only Window Options
224		2"	N/A	30'-2"	20'-2"	Boxed Steel	N/A	24 GA Ribbed Steel	None	White, Brown & Sandstone Window Options
224-LP		2"	N/A	30'-2"	20'-2"	Boxed Steel	N/A	24 GA Ranch Panel Woodgrain Steel	None	White, Brown, Sandstone & Almond Window Options
224-RP		2"	N/A	30'-2"	20'-2"	Boxed Steel	N/A	24 GA Raised Panel Woodgrain Steel	None	White, Brown, Sandstone & Almond Window Options
224-L		2"	7.45	30'-2"	20'-2"	Boxed Steel	Laminate Backer	24 GA Ribbed Steel	Inserted Polystyrene Panels	White, Brown & Sandstone Window Options
224-LPL		2"	7.45	30'-2"	20'-2"	Boxed Steel	Laminate Backer	24 GA Ranch Panel Woodgrain Steel	Inserted Polystyrene Panels	White, Brown, Sandstone & Almond Window Options
224-RPL		2"	7.45	30'-2"	20'-2"	Boxed Steel	Laminate Backer	24 GA Raised Panel Woodgrain Steel	Inserted Polystyrene Panels	White, Brown, Sandstone & Almond Window Options
224-S		2"	7.45	30'-2"	20'-2"	Boxed Steel	Steel Backer	24 GA Ribbed Steel	Inserted Polystyrene Panels	White, Brown & Sandstone Window Options
224-RPS		2"	7.45	30'-2"	20'-2"	Boxed Steel	Steel Backer	24 GA Raised Panel Woodgrain Steel	Inserted Polystyrene Panels	White, Brown, Sandstone & Almond Window Options
246		2"	N/A	30'-2"	20'-2"	Boxed Steel	N/A	24 GA Carriage House Panel Woodgrain Steel	None	White, Brown, Sandstone & Almond Window Options
246-L		2"	7.45	30'-2"	20'-2"	Boxed Steel	Laminate Backer	24 GA Carriage House Panel Woodgrain Steel	Inserted Polystyrene Panels	White, Brown, Sandstone & Almond Window Options
224-E		2"	N/A	16'-2"	16'-0"	Boxed Steel	N/A	24 GA Nominal Ribbed Steel	None	White Only Window Options
224-EL		2"	7.45	16'-2"	16'-0"	Boxed Steel	Laminate Backer	24 GA Nominal Ribbed Steel	Inserted Polystyrene Panels	White Only Window Options
224-ES		2"	7.45	16'-2"	16'-0"	Boxed Steel	Steel Backer	24 GA Nominal Ribbed Steel	Inserted Polystyrene Panels	White Only Window Options

*calculated R-Value

Color Options

All colors are not available in every model number. Refer to the chart above for color availability.
Colors are not exact due to the differences in monitors. For accurate color samples, contact a Haas Door dealer for a color selector.

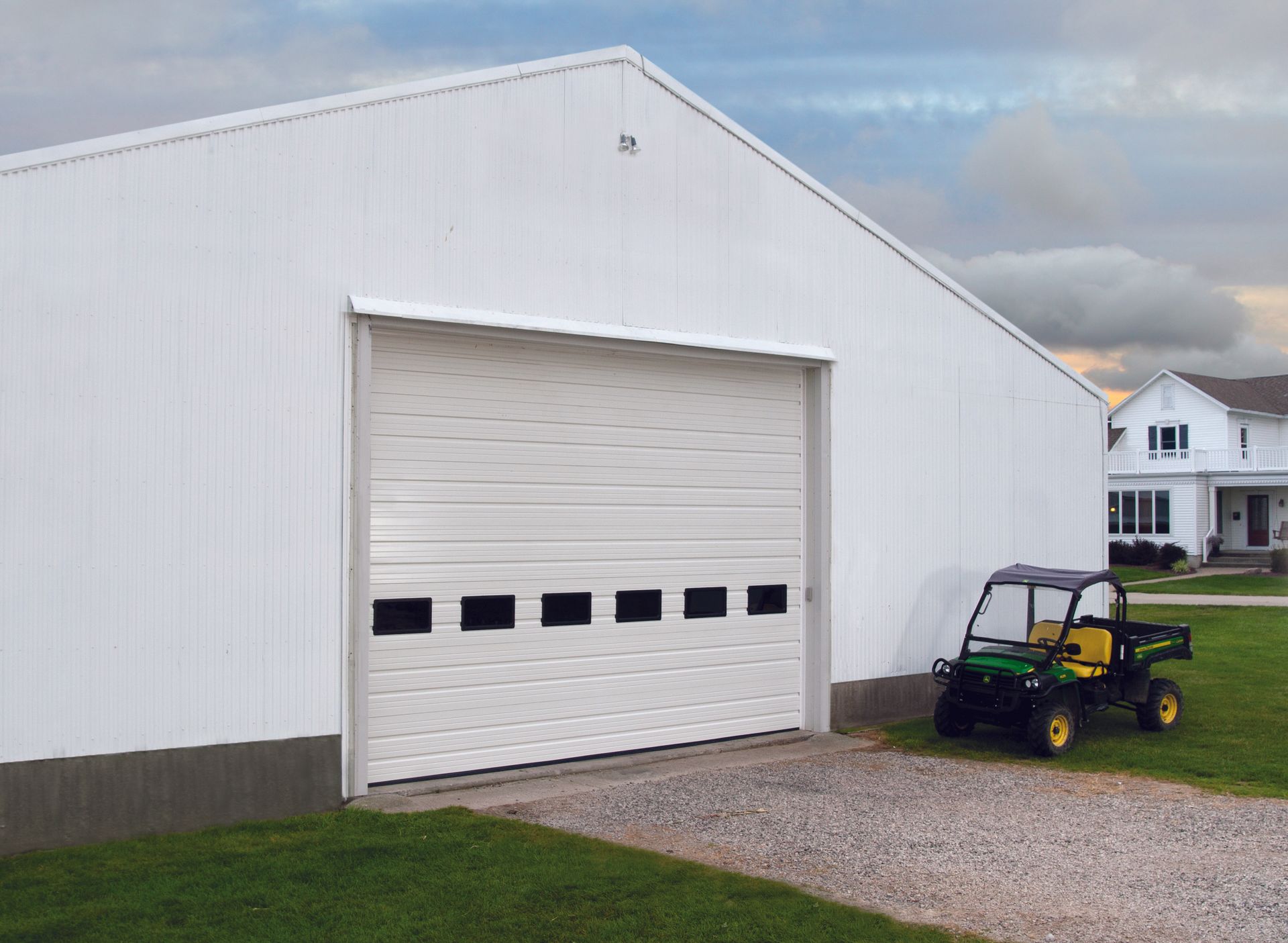

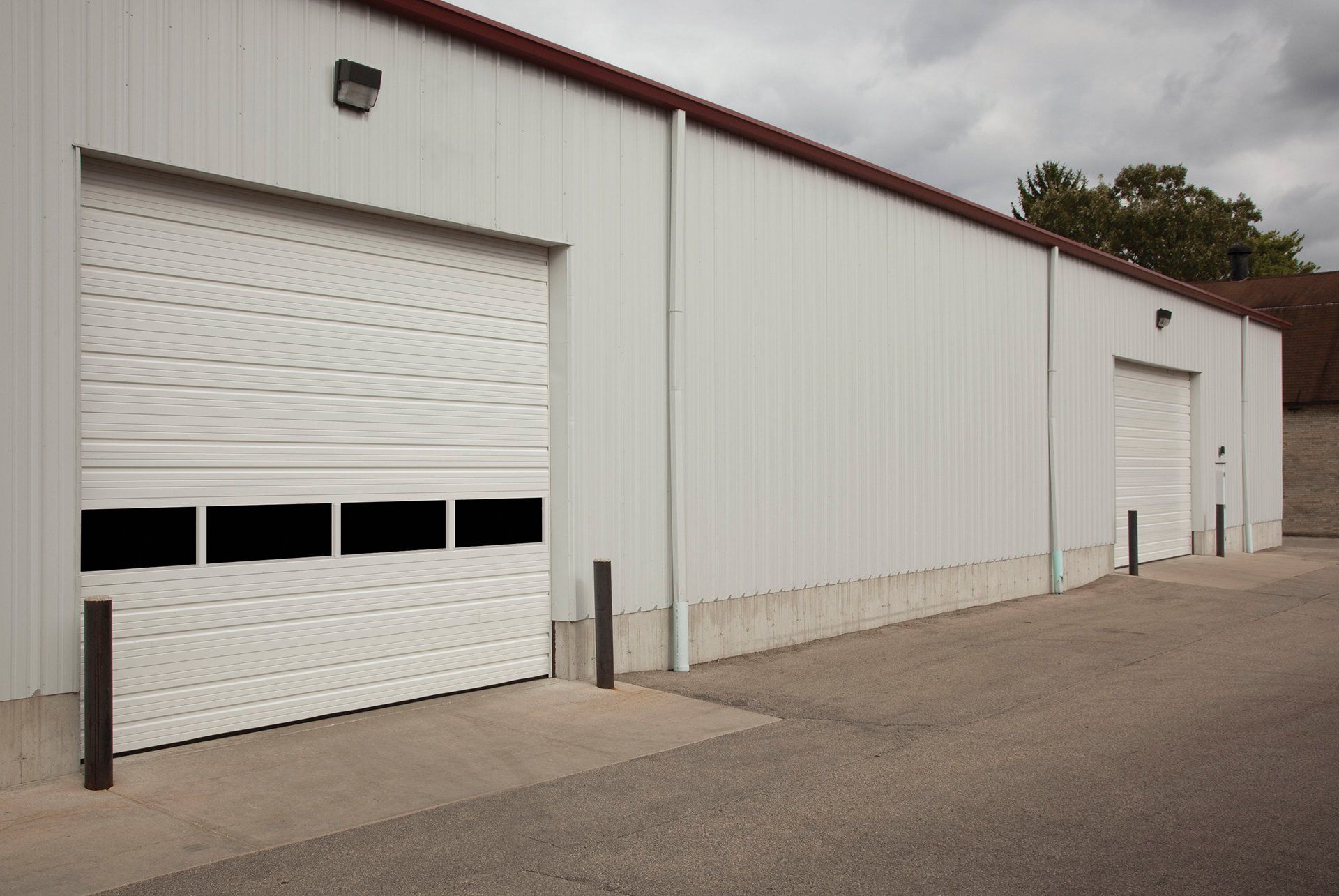

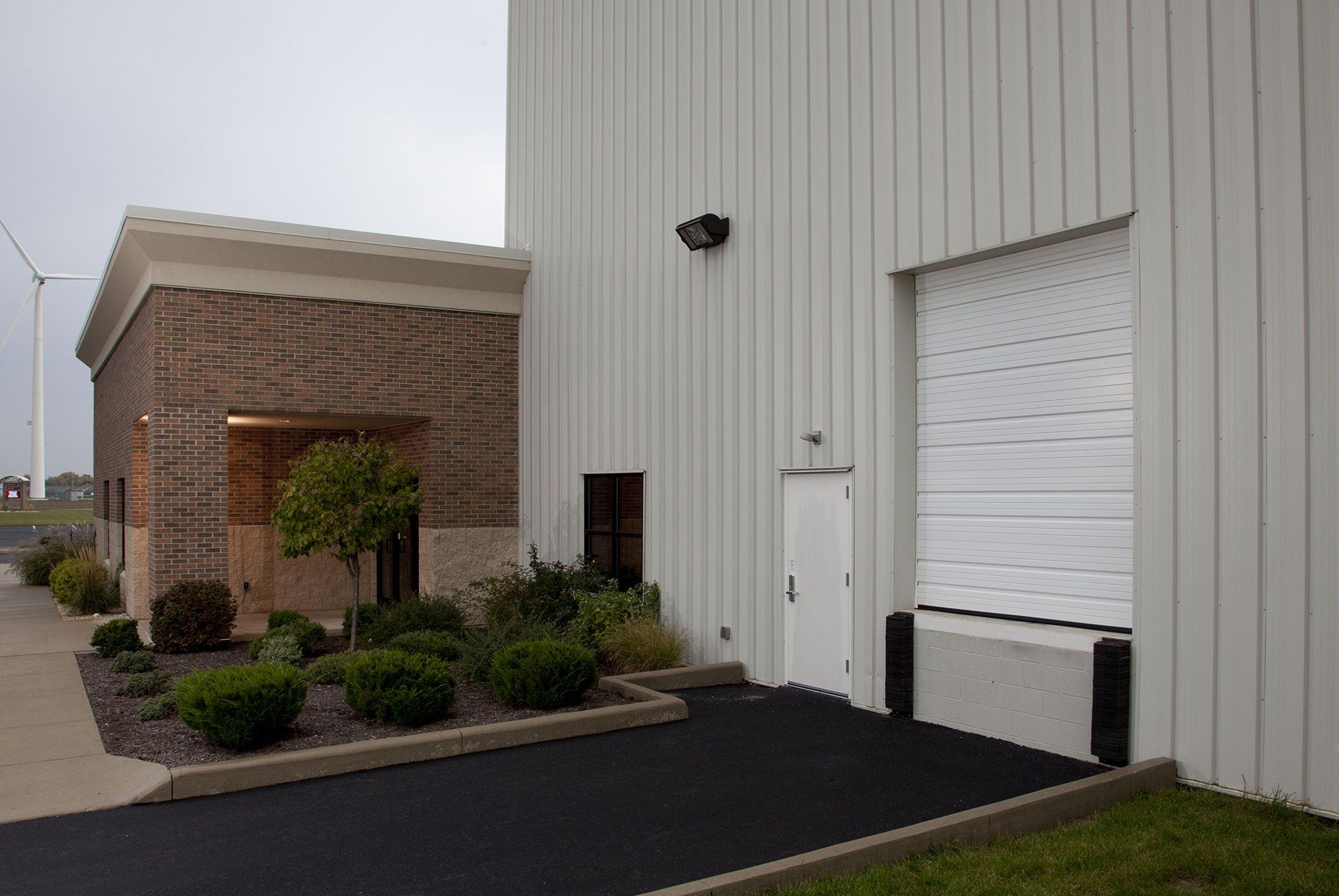

Polar White

Almond

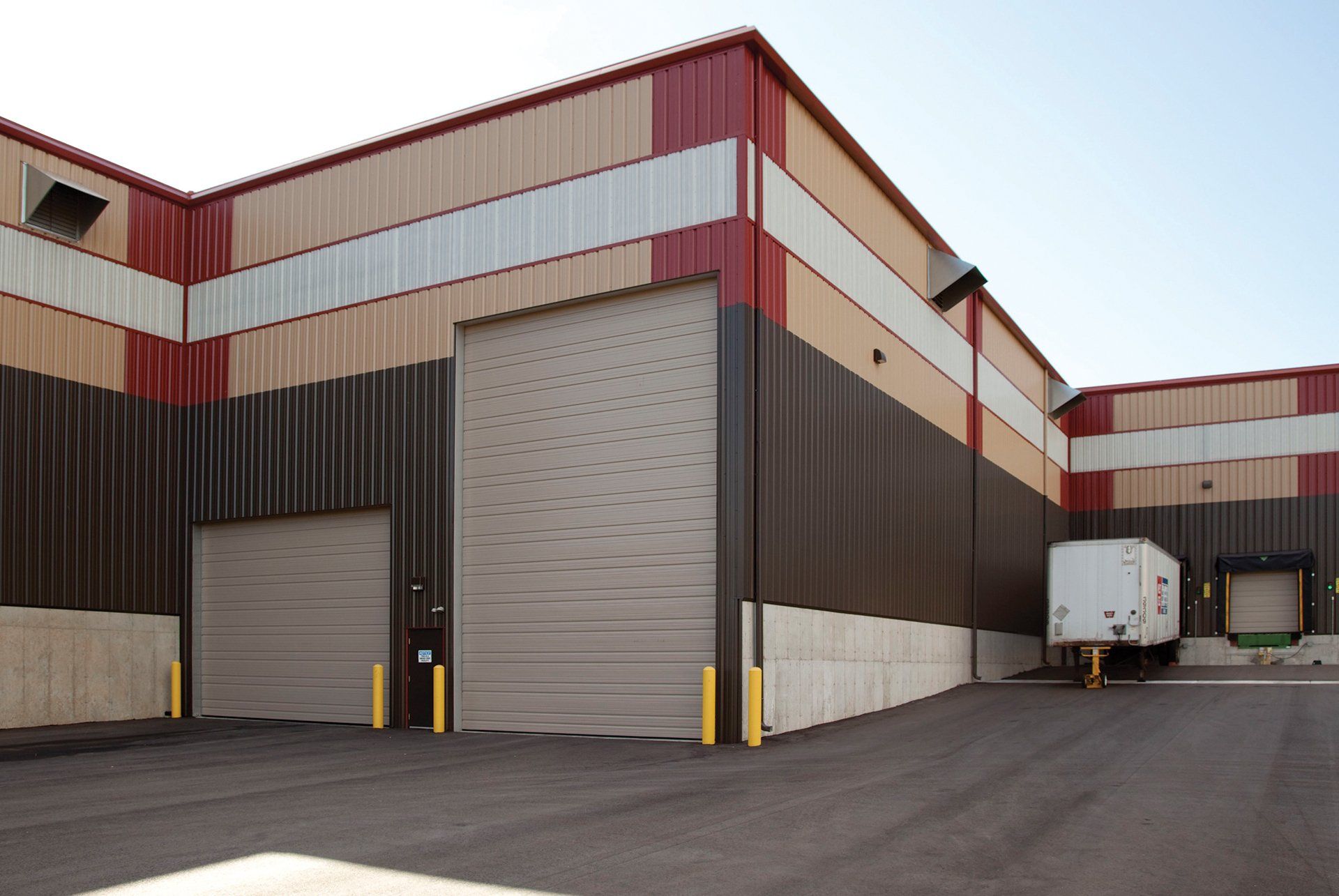

Sandstone

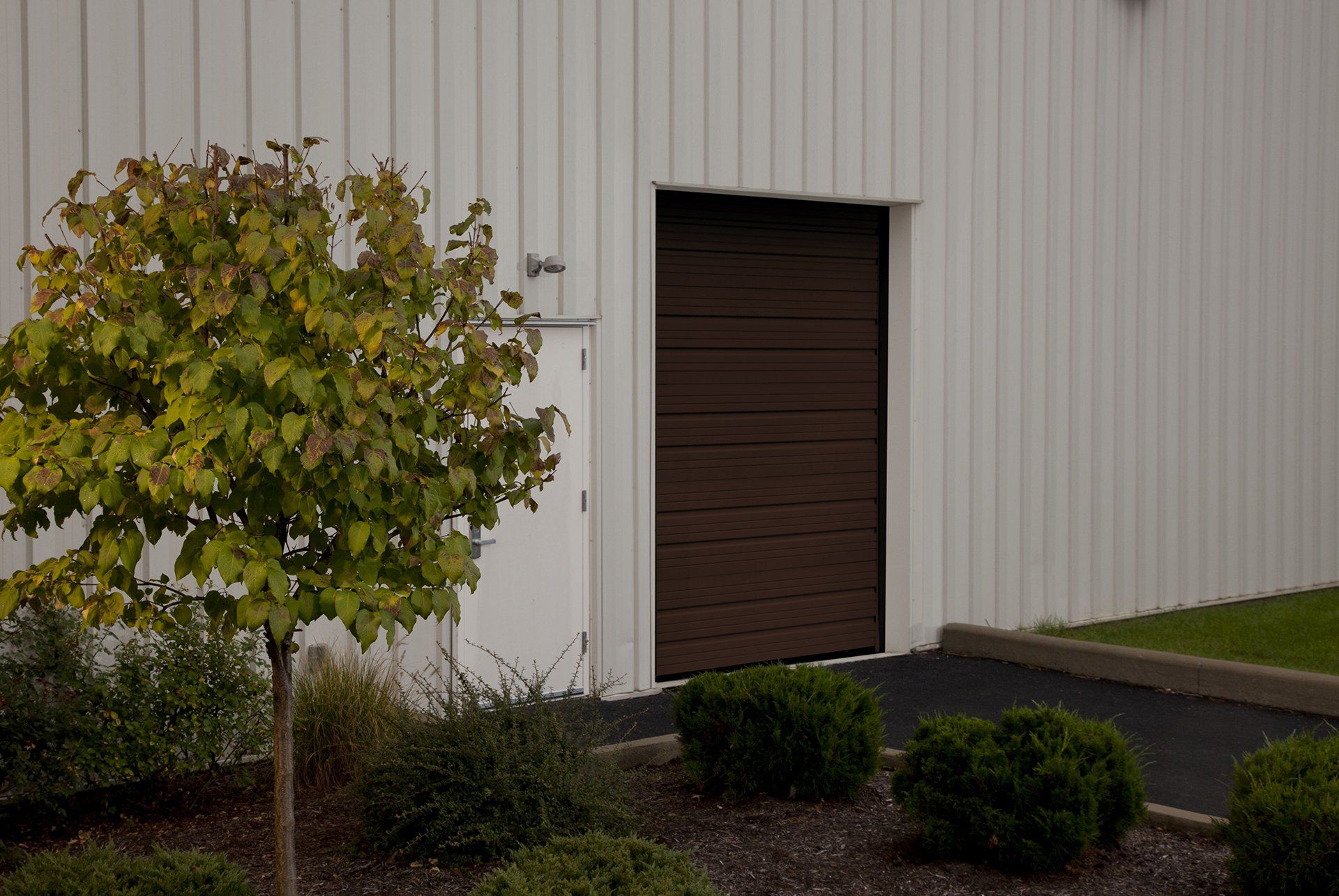

Brown
