Commercial Aluminum
|
|
1 3/4" Thick |
|
|
|
| |
|
|
|
|
|
Clean Lines

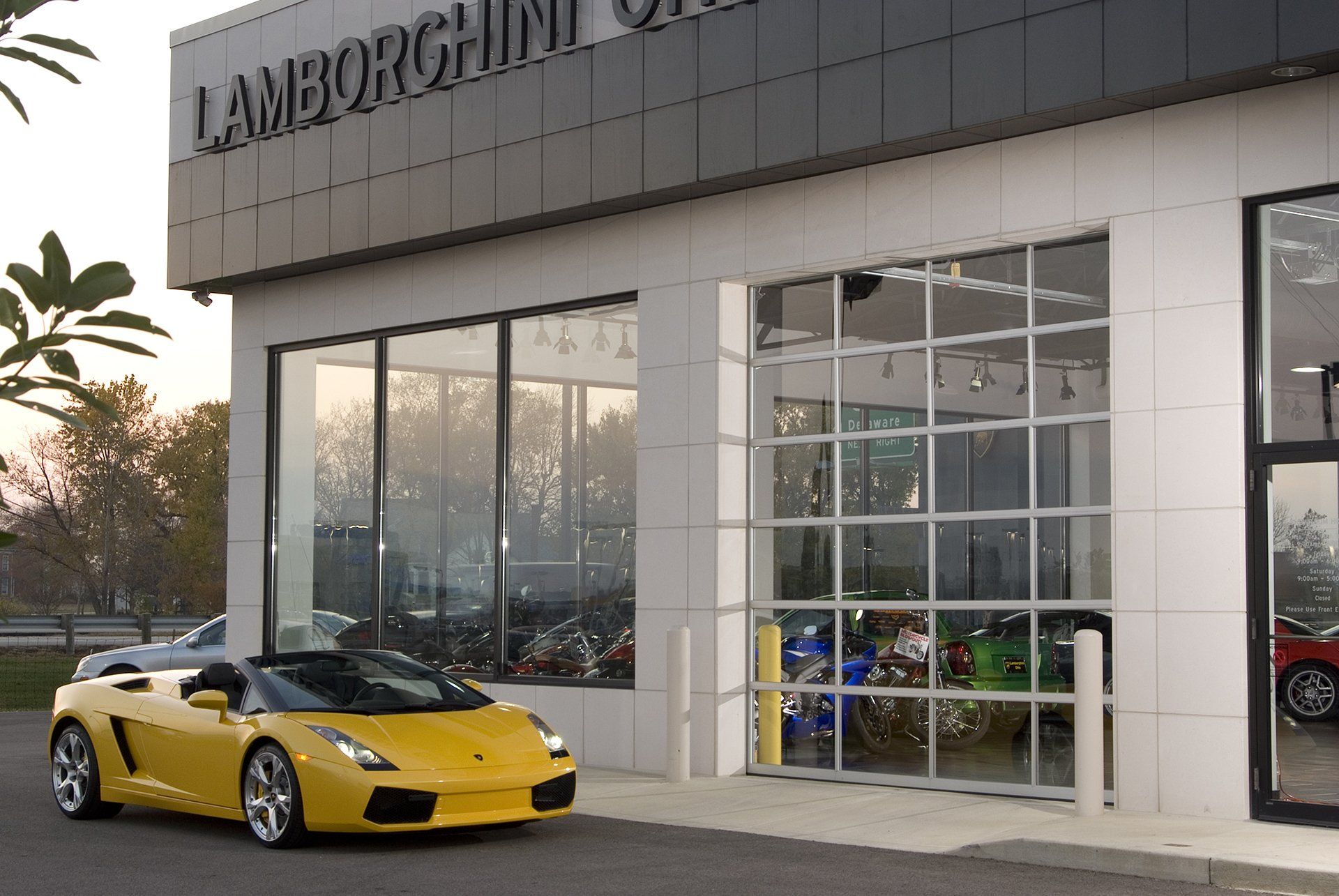

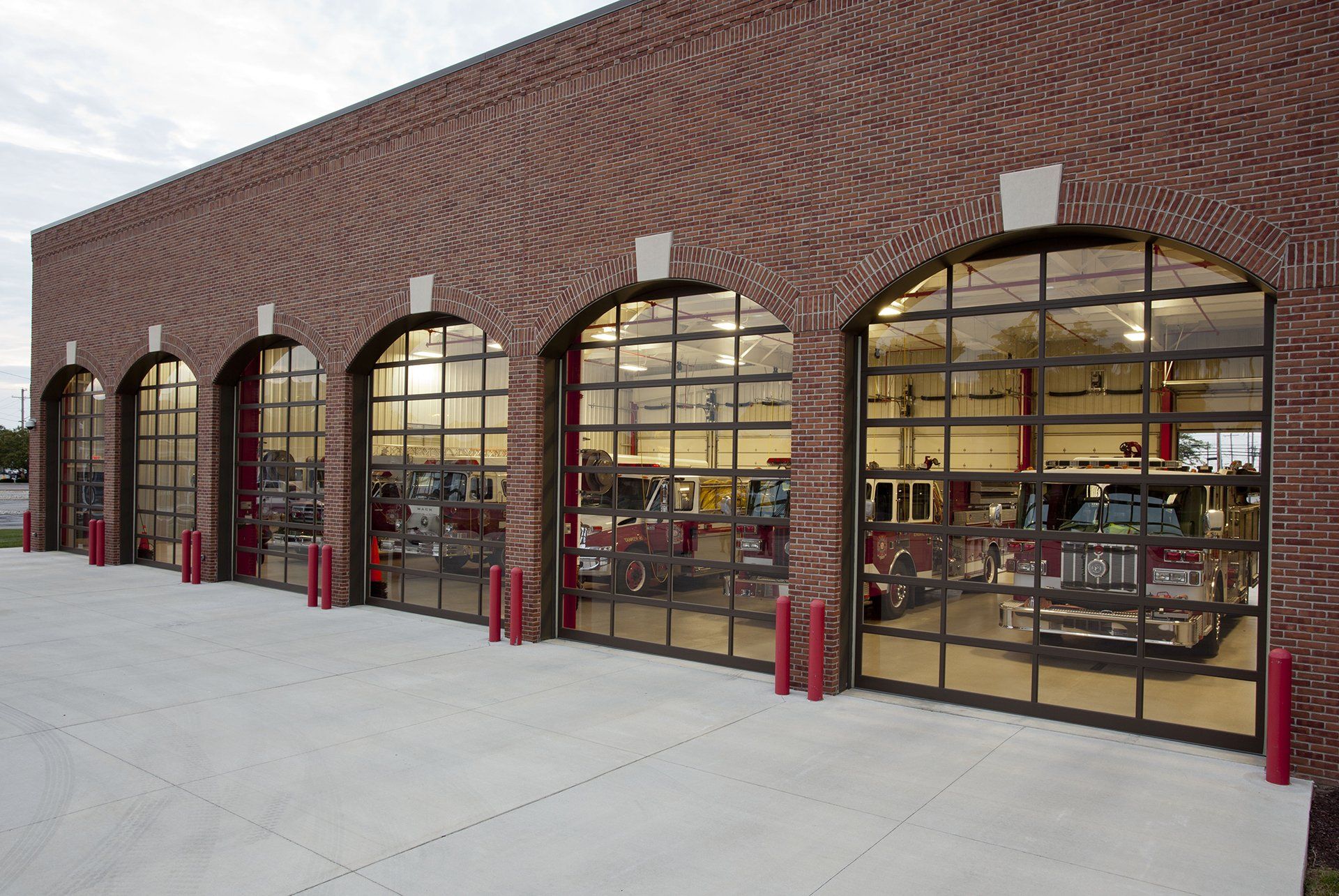

Haas CA-220 and CA-110 Aluminum Sectional Doors are strong, rugged and durable. A versatile product consisting of aluminum rails and stiles, combined to provide a strong profiled framing structure with aluminum panels and a wide range of glazing choices. This is the ideal application for service stations, quick lube facilities, automobile dealerships and other facilities where strength, appearance and corrosion resistance are key factors.
|
|
| |
|
|
|
Available Options |

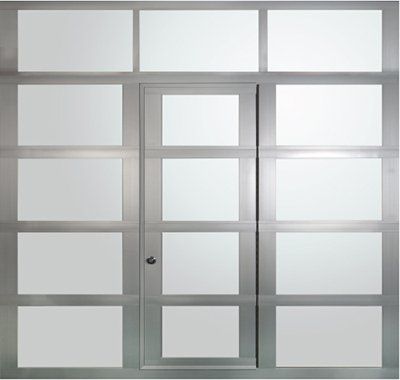

Pass Through Door (Exterior View)
Optional Exhaust Port (interior view) |
| |
2” or 3” Track

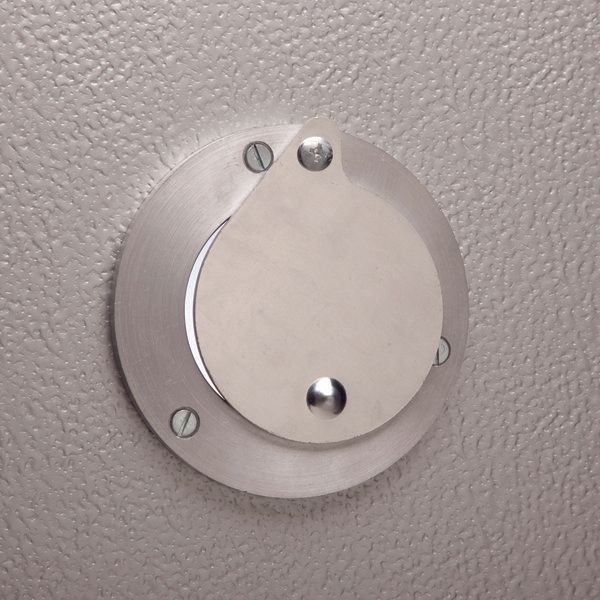

Exhaust Port(s)
Cam Safety Device
Spring Bumpers
Chain Hoist
High Cycle Springs
Wind Load Rating (220 only)
High Cycle Rollers
Pass Door (220 only)
Top Header Seal
Car Wash Cutout
Security Bars
|
|
| |
CA-220 Heavy Duty Frame
The CA-220 Commercial Aluminum sections are assembled using .065” minimum aluminum alloy tubular type extrusions with thru-bolt construction. Sections are 1-3/4” thick. Any Section height is available. Bottom rails, top rails and end stiles are 4” on doors up to 18’-2” wide. Doors greater than 18’-2” wide have 6” bottom rails and top rails. All doors wider than 12’-0” have built in struts and doors greater than 18’-2” wide have an additional “T” shaped cap strut. Standard color for the CA-220 is clear anodized; while color anodizing and special paint finishes are optional. Panels for solid sections are .040” stucco embossed or .050” smooth aluminum. A wide variety
of glazing materials are available.
|
Door
Thickness |
R-Value* |
Max. Door Size |
End Stile Type |
Center
Stile |
Rails |
Panel & Glazing Types |
Width |
Height |
Meeting |
Top & Bottom |
 |
1-3/4”
|
N/A |
28’-2” |
16’-0” |
4" or 6" Aluminum Size Dependant |
2" Aluminum |
4" Aluminum |
4" or 6" Aluminum Size Dependant |
Polystyrene & Aluminum Laminated Panels
Various Types of Thicknesses of Glazing
|
CA-220 Color Options
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Clear
Anodized |
Dark Bronze Anodized |
Black
Anodized |
Polar White |
Almond |
Sahara Tan |
Sandstone |
Brown |
Hunter Green |
Gray |
Painted Bronze |
|
|
| |

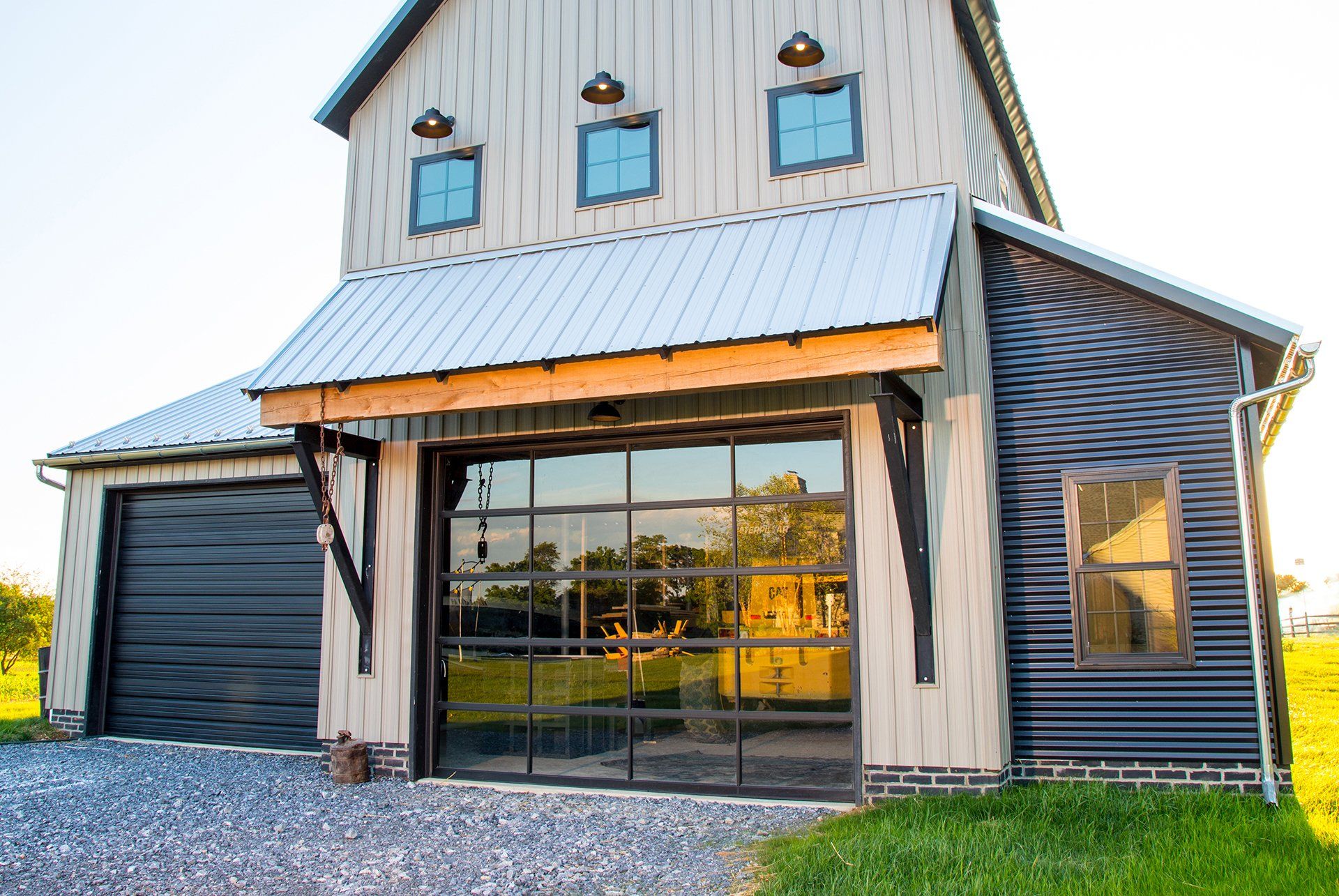

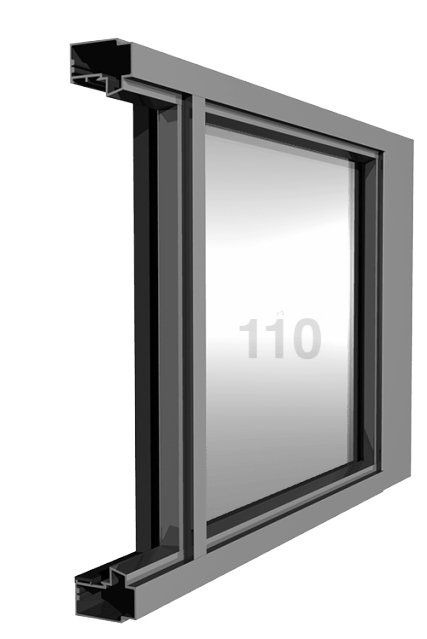

CA-110 Narrow Line Frame
The CA-110 Commercial Aluminum sections are assembled using .065” minimum aluminum alloy, tubular type extrusions with thru-bolt construction. Sections are 1-3/4”
thick. Any Section height is available. Bottom rails, top rails and end stiles are 3” on doors up to 13’-11” wide. Doors greater than 13’-11” wide have 4” bottom rails. All doors wider than 12’-0” have built in struts on each section. All aluminum is clear anodized as standard. Color anodizing and special paint finishes are optional. Panels for solid sections are .040” stucco embossed or .050” smooth aluminum. A wide variety of glazing materials are available.
|
Door
Thickness |
R-Value* |
Max. Door Size |
End Stile Type |
Center
Stile |
Rails |
Panel & Glazing Types |
Width |
Height |
Meeting |
Top & Bottom |
 |
1-3/4”
|
N/A |
16’-2” |
14’-0” |
3" Aluminum |
1" Aluminum |
2" Aluminum |
3" Aluminum
Upgradable to
4" or 6" |
Polystyrene & Aluminum Laminated Panels
Various Types of Thicknesses of Glazing |
CA-110 Color Options
|
|
|
|
|
|
|
|
|
|
|
Clear
Anodized |
Dark Bronze Anodized |
Black
Anodized |
Polar White |
|
|
|
|
|
|
|
|
|
|
